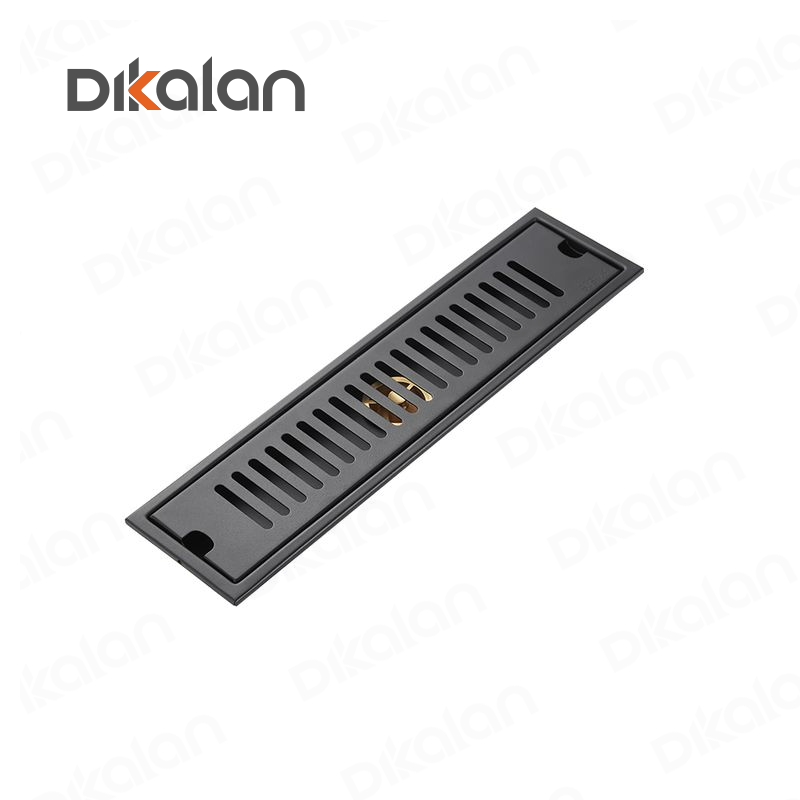

Linear shower drains products have many characteristics, such as pressure resistance, bending resistance, freeze-thaw resistance, strength, corrosion resistance, acid and alkali resistance, long life, smooth surface, no infiltration, maintenance-free, lightweight, easy to install, etc. Since it is popular because of so many features, the following is a list of steps and methods for installing linear shower drain.
Here is the content list:
Determine the pit
Test data ready for paving
Check again to reduce the error
Step 1: Drainage trench measurement and alignment:
Mark the direction of the finished linear shower drains with white ash on the foundation ready for excavation to ensure the accuracy of the pit for the drainage trench.
Step 2: Excavation of the finished linear drain trench;
Depending on the size of the drainage trench selected for the linear shower draintrench plan, a small excavator can be used to excavate the finished linear drainage trench with a width of ≤U100-U150; a large excavator can be used to excavate the finished linear drainage trench with a width of ≥U250-U350.
Step 3: Excavation of the finished linear drain trench;
Need to measure the slope of the linear shower drains, after calibration to start pouring the drainage ditch sub-base; after pouring the drainage ditch sub-base re-examine the elevation, slope, and data to meet the standard before the next step of construction.
Step 1: Pull the line to position the finished linear drain;
Place a small section of the finished gutter along the bottom base of thelinear shower drain, before installation to observe whether the reserved pouring space between the bottom base of the drain and both sides of the linear shower drain is sufficient. Test the data to meet the standard pull line positioning to start the formal paving.
Step 2: Measure the level of the linear gutter;
Workers install linear shower drain gutter docking gutter groove for sealing the seam gluing. It is easy to cause the deviation of the two ends of the finished linear gutter not at a level, and you need to master workers with a rubber hammer knocking flat while using a level measuring instrument to check the level error, such as height difference should not exceed 1-2mm.
Step 3: Pouring the concrete base on both sides of the drain;
Both sides of the finished drain in the base of the linear shower drain pavement should be fixed, the joints of the drain pile mortar to keep the finished linear drain not deformed, thelinear shower drain unblocked at the mortar solidification began to pour concrete on both sides of the finished linear drain.
Step 1: Laying the finished linear gutter cover;
With the linear shower drain base foundation and concrete foundation on both sides, half of the construction of the linear drain is completed. Again, the level of the finished drain is checked with a level measuring instrument to be within the error range and the linear shower drain cover is started to be paved.
Step 2: Spreading mortar on the linear shower drain cover
The mortar spread on the linear shower drain gutter cover is for the stone or turn to do the foundation bedding, according to the thickness of the selected stone. The thickness of the selectedlinear shower drain gutter cover is also different, according to the load strength reference EN1433 standard requirements to choose the different load-bearing grade of the gutter cover.
Step 3: Stone paving
The stone pavement is generally 3-5mm higher than the linear shower drains gutter downspout, and the stone is glued to the downspout to ensure that the water flows quickly, and is discharged from the gutter to the nearest public domestic water network.
