Linear shower drains, like many other elements in the home, are a basic feature that has remained largely unchanged over the years. Depending on how you shower, they are usually in the middle, or if your shower is also a bathtub, at one end. But that's not your only option. Linear shower drains, sometimes called infinite shower drains, are virtually invisible.
Here is the content list:
The function of a linear shower drain system
Performance of the product's structure
Experience multiplied
An efficient linear shower drain system should try to be as fast as possible to collect and drain, and separate the collection and delivery. Drainage in zones, reasonable allocation of the catchment area, minimizing the runoff distance and retention time of surface rainwater, and achieving the purpose of the fast collection. While linear shower drain system is mainly responsible for collecting surface water, water transmission mainly relies on pipes, and reasonable arrangement of outlet and transmission pipes to ensure smooth drainage.
In addition, the linear shower drain system is different from other traditional drainage structures in that it has its gluing groove structure. So, all the components can be connected and then filled with a special waterproofing tightening agent in the gluing groove, which ensures that the linear shower drainage connection has a tight waterproof performance.
The linear shower drain structure is composed of five major parts from top to bottom: linear grille panel, filtering parts, anti-odor parts, bottom groove, and drainage outlet.
Linear grille panel: linear long strip-shaped, the market is mostly made of stainless steel. Drainage over a large area of water.
Filter: installed in the linear shower drain bottom groove, can effectively block hair and other debris to prevent sewer clogging, generally divided into the concave filter and convex filter.

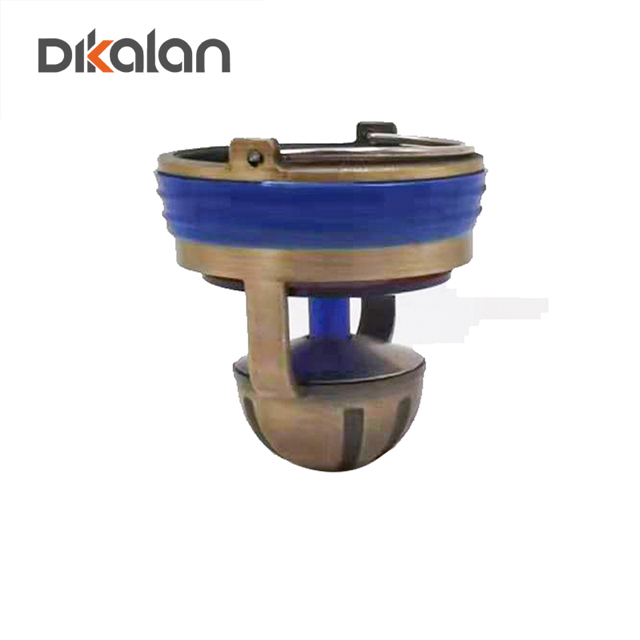

Anti-odor parts: connected with the filtering parts, anti-odor parts are the most important parts of the floor drain, to prevent insects, odor, and overflow effects. Generally divided into V-type silicone deodorant parts or T-type metal deodorant parts.
Bottom groove:linear shower drainssystem drainage temporary storage place, water first through the bottom groove, after filtering discharge. Generally, there is a water guideline on the bottom tank.
Drain: The part of the floor drain that drains to the sewer, the caliber needs to be slightly smaller than the sewer orifice.
Safety:
Linear shower drain overrides the height difference design of traditional floor drains in the drainage area and can be installed horizontally and firmly on the ground, which helps children, the elderly, and people with limited mobility to pass safely.
Convenience:
The linear shower drain's long strip design requires only one or two sides of the tile to be tilted during installation, making it easy to tile, shortening man-hours, and saving labor costs.
Aesthetics:
Linear shower drains can be tailored in length and shape to meet the needs of different environments. It also effectively improves the flatness of the floor and increases the practical value of the space.
The innovative character of our product range has grown over generations so DIKALAN is often a trendsetter in the field of hygiene. We are the inventor and developer of the easy linear drain shower system, thus sparking the craze for free obstructions in private bathrooms.
It is reported that the Bei'anhe Depot on the first section of Line 16 has the largest construction scale in the city, covering an area of 31.55 hectares and a total construction area of 313,100 square meters. The comprehensive utilization of the depot is based on the principle of "comprehensive development guided by public transportation". Through its construction, a transportation network system including rail transit, buses, tourist buses, bicycles and walking will be formed to facilitate citizens' travel.
The humanization of Line 16 is first reflected in the setting of the bathroom. There are 7 toilet seats in female toilets, which meets the requirement of less than 1:2 for men and women, and far exceeds the number of toilet seats for women in general subways. This design can effectively alleviate the difficulty of toileting for female passengers during peak periods. In addition, the barrier-free toilet is equipped with a changing table to meet the needs of mothers and babies; the customer service center has a "Z"-shaped countertop with a semi-circular groove, so that passengers can conveniently place personal belongings when buying tickets.
At the same time, a total of 2,000 cameras were installed in the first section of Line 16, which is the first line in Beijing to adopt a high-definition IP camera video surveillance system. The system can locate, identify and track the target in the dynamic scene through real-time analysis of the surveillance video image, and analyze and judge the target behavior, so that it can respond in time when an abnormal situation occurs, and achieve early detection and active prevention , To help security personnel effectively avoid or efficiently handle emergencies.
Linear shower drains products have many characteristics, such as pressure resistance, bending resistance, freeze-thaw resistance, strength, corrosion resistance, acid and alkali resistance, long life, smooth surface, no infiltration, maintenance-free, lightweight, easy to install, etc. Since it is popular because of so many features, the following is a list of steps and methods for installing linear shower drain.
Here is the content list:
Determine the pit
Test data ready for paving
Check again to reduce the error
Step 1: Drainage trench measurement and alignment:
Mark the direction of the finished linear shower drains with white ash on the foundation ready for excavation to ensure the accuracy of the pit for the drainage trench.
Step 2: Excavation of the finished linear drain trench;
Depending on the size of the drainage trench selected for the linear shower draintrench plan, a small excavator can be used to excavate the finished linear drainage trench with a width of ≤U100-U150; a large excavator can be used to excavate the finished linear drainage trench with a width of ≥U250-U350.
Step 3: Excavation of the finished linear drain trench;
Need to measure the slope of the linear shower drains, after calibration to start pouring the drainage ditch sub-base; after pouring the drainage ditch sub-base re-examine the elevation, slope, and data to meet the standard before the next step of construction.
Step 1: Pull the line to position the finished linear drain;
Place a small section of the finished gutter along the bottom base of thelinear shower drain, before installation to observe whether the reserved pouring space between the bottom base of the drain and both sides of the linear shower drain is sufficient. Test the data to meet the standard pull line positioning to start the formal paving.
Step 2: Measure the level of the linear gutter;
Workers install linear shower drain gutter docking gutter groove for sealing the seam gluing. It is easy to cause the deviation of the two ends of the finished linear gutter not at a level, and you need to master workers with a rubber hammer knocking flat while using a level measuring instrument to check the level error, such as height difference should not exceed 1-2mm.
Step 3: Pouring the concrete base on both sides of the drain;
Both sides of the finished drain in the base of the linear shower drain pavement should be fixed, the joints of the drain pile mortar to keep the finished linear drain not deformed, thelinear shower drain unblocked at the mortar solidification began to pour concrete on both sides of the finished linear drain.
Step 1: Laying the finished linear gutter cover;
With the linear shower drain base foundation and concrete foundation on both sides, half of the construction of the linear drain is completed. Again, the level of the finished drain is checked with a level measuring instrument to be within the error range and the linear shower drain cover is started to be paved.
Step 2: Spreading mortar on the linear shower drain cover
The mortar spread on the linear shower drain gutter cover is for the stone or turn to do the foundation bedding, according to the thickness of the selected stone. The thickness of the selectedlinear shower drain gutter cover is also different, according to the load strength reference EN1433 standard requirements to choose the different load-bearing grade of the gutter cover.
Step 3: Stone paving
The stone pavement is generally 3-5mm higher than the linear shower drains gutter downspout, and the stone is glued to the downspout to ensure that the water flows quickly, and is discharged from the gutter to the nearest public domestic water network.
Wenzhou Decalan Sanitary Ware Co., Ltd. is a domestic professional manufacturer of sanitary ware. The company has a strong technical force, sophisticated processing equipment, advanced production technology, and high-precision detection methods.
Linear shower drain gives the first impression of a straight, clean and tidy line, which is in fact the basic rationale. Originating in the European market, linear shower drain age is a modular system with a variety of components that can be combined in different sizes to meet the needs of various customers. The unique design concept of linear shower drain also gives designers more room for imagination and development, making it a more reliable product in modern architecture.
Here is the content list:
Linear shower drainage features
Linear shower drainage appearance
Linear shower drainage system
1) The material of the linear shower drain device is resin concrete, which has the characteristics of lightweight, anti-aging, strong anti-freezing and anti-corrosion, strong bearing capacity, smooth surface, and zero permeability.
2) the unique design cross-section of V and U shapes can effectively increase the drainage capacity and enhance the self-cleaning function; linear shower drain continuously intercepts water and has high drainage efficiency.
3) giving a very intuitive linear look and feel, simple and uniform.
4) the concealed effect is especially suitable for the surface drainage of advanced paving.
5) linear shower drain can be used as a natural transition between two different floor paving forms.
6) simple slope finding, easy construction, fast installation, and construction, which can ensure the construction period.
7) installation, maintenance, construction digging trench depth shallow.
8) linear shower drain can effectively reduce the amount of buried pipe construction and reduce construction difficulties.
Linear shower drain age appearance
Linear shower drain can be used as an element of landscape design, adding a sense of design and highlighting taste and style. Slit linear drainage system, U-shaped linear shower drainage system, V-shaped linear shower drain system, one-piece linear shower drainage system, curb linear drain system, etc.; whether it is a common style, or custom-made fancy, or even resin concrete gives a very intuitive linear look and feel, simple and uniform.
Prefabricated resin concrete linear shower drain, modular design, assembled products, systemic solutions. Compared to the traditional practice of cast-in-place masonry, precast resin concrete linear shower drain is not only light in weight, anti-aging, frost, and corrosion resistant, strong in bearing capacity, smooth surface, and has zero permeability. And because of the modular system of linear shower drain, the installation is quick and the construction period is short.
As surface water often contains some harmful substances such as oil and heavy metals, we advocate collecting and purifying it to avoid secondary pollution. In addition, the purified rainwater can also be stored through the linear shower drainwater storage module. On the one hand, it can be used for storage and staggering to prevent flooding when water consumption is high; on the other hand, it can be used to supplement groundwater through infiltration or by further purification.
